Sharples P 3400 Decanter | Applications & Specifications

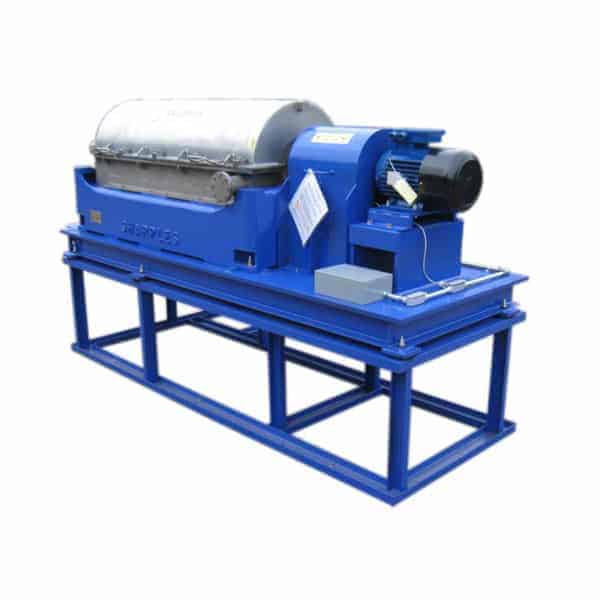

The Sharples P-3400 Decanter Centrifuge is a horizontal de-sludging centrifuge built for the two-phase separation of crude oil tank bottoms, refinery slop sludge, industrial sludge-thickening, municipal sludge dewatering, paint sludge handling, etc.

With a 25 HP Motor, the P 3400 decanter has a bowl RPM of 4,000 and can process 50 GPM on ethanol hemp biomass separation.

Applications

Hemp Solvent Extraction	Hemp biomass & ethanol separation (Explosion Proof)
Ethanol Extraction	Ethanol extraction of THC or CBD Oil
Crude Oil Tank Bottom Sludge	Tank bottom BS&W separation
Municipal Wastewater	Sludge thickening
Liquid Humus Fertilizer	Humus biomass separation
Fish Meal Separation	Fish oil & fish meal separation from stickwater
Pyrolysis Sludge Separation	Bio-oil separation from bio-char sludge
Waste Oil De-sludging	Industrial waste oil de-sludging

Specifications

Model Type	Sharples P-3400
Rated Capacity	50 GPM on Ethanol Biomass Separation
Auger Differential Speed	1 ~ 42 RPM
Drive Motor Power	25 HP
Gearbox Ratio	1: 95
AE (Area Equivalent)	1,500
Bowl Speed	4000 RPM (3,150 Gs RCF)
Conveyor Protection	Carbide Tile or Tungsten Carbide Hard-Surfacing

Used, Remanufactured Sharples P 3400 Decanters
